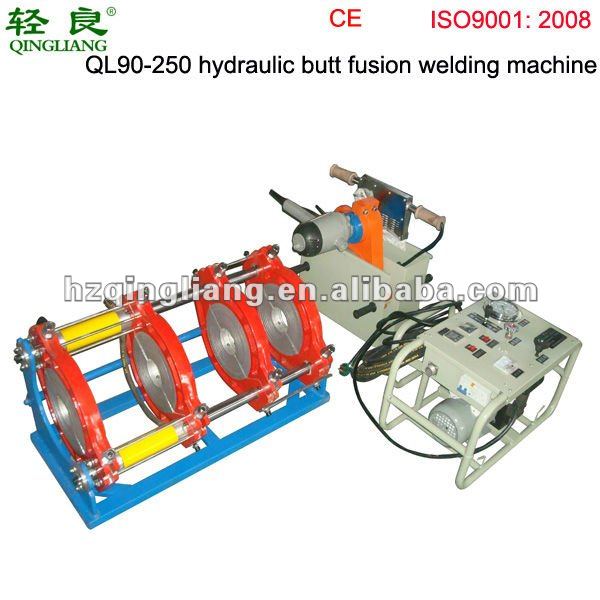

90-250 hydraulic tube welder

1. Product: tube welder, 2. Material: 45# steel, 3. Certificates: ISO9001:2008, CE, 4. Finishing: high gloss paint - details see: https://www.machineto.com/90-250-hydraulic-tube-welder-10135325

Condition:New	Place of Origin:Zhejiang China (Mainland)	Brand Name:QINGLIANG	Model Number:QL90-250 hydraulic
Input Voltage:220V	Current:16.4A	Power:3.6KW	Dimensions:90, 110, 125, 140, 160, 180, 200, 225, 250
Usage:suitable for PE and PP pipes and fittings	Certification:CE, ISO9001: 2008	operating way:hydraulically	name:tube welder

contact supplier for 90-250 hydraulic tube welder

1. Product Information

Model No.	QL90-250 hydraulic
Materials	aluminum alloy casting, 45# steel
welding level(Φ, mm)	90, 110, 125, 140, 160, 180, 200, 225, 250
Docking deviation	≤0.3mm
Temperature deviation	±3°c
Total power consumption	3.6KW
Voltage	220V
Electric current	16.4A
Working temperature	225°c±5°c
Environment temperature	-5......45°c
Time required to reach soldering temperature	<20min
Materials can be welded	PE PP PB PVDF HDPE PVC
Packing	plywood case
MOQ	1 PCS
Delivery Port	FOB NINGBO/SHANGHAI, China
Payment Terms	full T/T with 30% deposit
Lead time	within 5 days after getting deposit, others be paid before sending goods.
Sample	available
Certificates	ISO9001: 2008, CE

2. Usage

Hydraulically operated tube welder, suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strenghth and performance.

3. Function and Feature

1. Suitable for DN90-250PE and PP pipes.

2. It is composed of operating platform, fixture, heater and milling cutter.

3. The fixture and operating system are separate, easy to operate under the ditch.

4. The fixture has two ferrules, can locate the pipes more accurately, easy to adjust the bit wrong side.

5. Using hydraulic system to control docking pressure, the pressure is more acurate, the operating is more smooth.

6. Using solenoid valve to control the cylinder running, it makes the operating easier and safer.

4. Certificate

5. Corporate Image

6. Package Picture
