5m3/h Dry-mix gunite machine

1.Dry-mix gunite machine., 2.20 years experience, 3.Certificate:MA, 4.Output:3,5,7,9m3/h, 5.Exported to Germany,Greece,UAE,India - details see: https://www.machineto.com/5m3-h-dry-mix-gunite-machine-10096555
Condition:NewMax. Conveying Distance:200mMax Aggregate Size:15mmHose Inner Diameter:51 mm
Air Consumption:8m3/minPlace of Origin:Henan China (Mainland)Brand Name:XudaModel Number:PZ-5
Voltage:380VPower(W):5.5KWDimension(L*W*H):1350X750X1200 mmWeight:720kg
Certification:MAWarranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseasColor:Colorful
Driven:Electricity,diesel,air motorOutput:5 m3/hApplication:Construction,Mining,tunnel,etcMax stone size:15mm
Dimension:1350X750X1200mm
5m3/h Dry-mix gunite machine
contact supplier for 5m3/h Dry-mix gunite machine


Dry-mix gunite machine

Applications:

1. XuDa PZ-5 Gunite machine is a kind of Shotcrete machine for tunnels,hydro-power

engineering,mines,underground engineering, civil engineering and slope stabilization,etc

2. Atificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

3. Refractory material spraying and repair for industrial kilns or kilns’s inner liner.

Features:

  1. Advantages:This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
  2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
  3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.

Technical Data:

ItemPZ-5
Output5.5 m3/h
Max. conv. dist200 m
Water cement ratio0.4
Max. Aggregate. size15 m
Hose inner size50 mm
Operating air pressure0.2~0.6 MPa
Air consumption7~8 m3/min
Motor power5.5kW(7.5hp)
Voltages380v,440v,660v,1140v 50HZ/60HZ
Dimension1350X750X1200 mm(LXWxH)

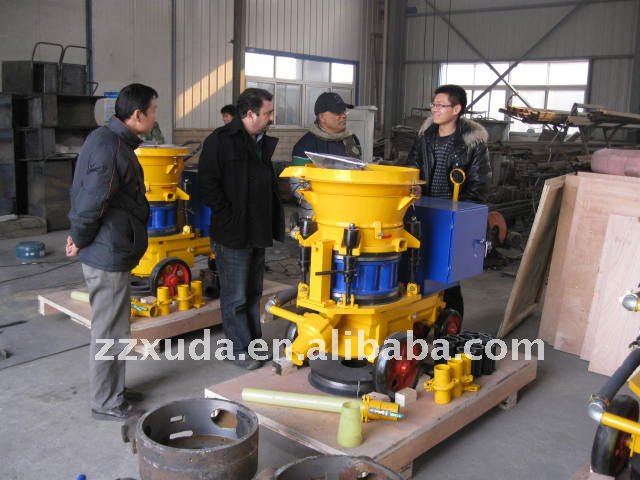

Indian customer in factory

Armenian customer

Accessaries

Production process

Exported machine

Transporting

5m3/h Dry-mix gunite machine
Packaging Detail:Wooden box or customized
Delivery Detail:Within 5 working days
