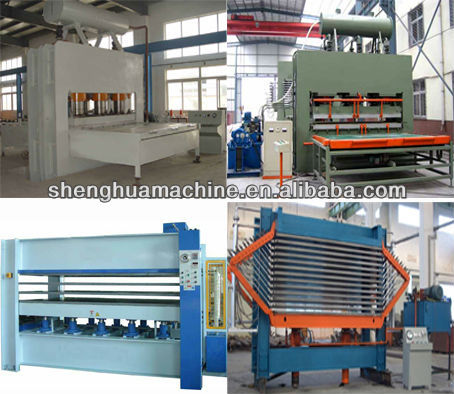

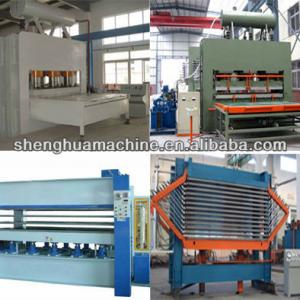

400T 10 Layers hydraulic hot press

1.Easy to operate and maintain and saving labors, 2.Manufacturer and Good quality as well as low price - details see: https://www.machineto.com/400t-10-layers-hydraulic-hot-press-10345924
Condition:NewType:Hot PressApplication:plywood hot pressPressure:31.5mP
Place of Origin:Shandong China (Mainland)Brand Name:ShenghuaModel Number:SH-4*8-500TVoltage:380V
Power(W):18.5KwDimension(L*W*H):3550*1370*3820 mmWeight:26TonsCertification:CE
Warranty:1 yearAfter-sales Service Provided:Overseas third-party support available
400T 10 Layers hydraulic hot press
contact supplier for 400T 10 Layers hydraulic hot press


10 openings Hot Press Machine

1Nominal pressure400 T
2Opening10
3Net opening80 mm
4Hot platen size2700×1370×42 mm
5Heating methodHeat transfer oils
6Loading side8' size
7Cylinder320mm×2
8Working stroke800 mm
9Oil pressure25 Mpa
10Upper beam900 mm
11Bottom beam900 mm
12Middle cross beam450 mm
13Thickness of the frame35 mm
14Hydraulic systemMade in Jinan
15Control methodAutomatic control
16Net weightAbout 22 T
17Overall dimensions3550*1370*3820 mm
18FOB PORTQINGDAO
400T 10 Layers hydraulic hot press
Packaging Detail:Standard Package
Delivery Detail:45 days
