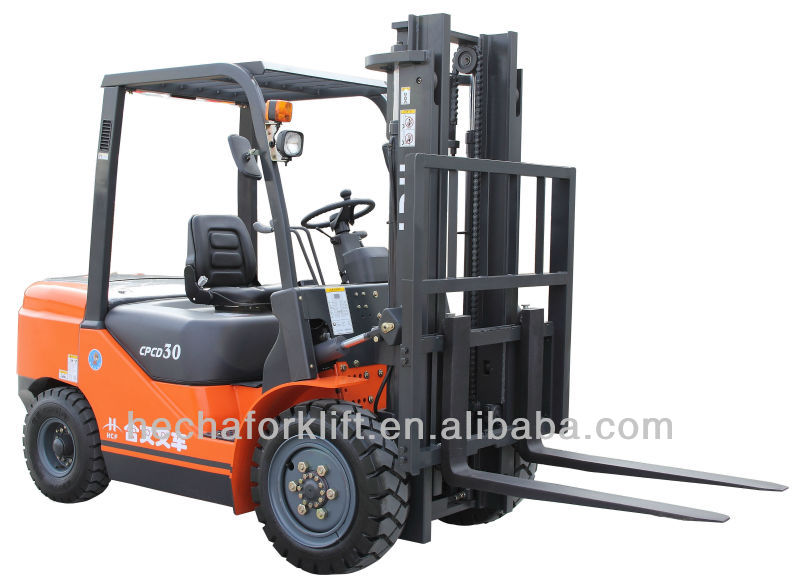

3 ton hydraulic diesel forklift

Name: 3 ton hydraulic diesel forklift
SKU: 10109333

Model CPCD30 Forklifts Anhui,China(Mainland) Ref 10109333

Price on request

Pricing is provided on request — use the quote form below.

Port: Shanghai
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 15000 Set/Sets per Year
Payment Terms: L/C,T/T

Something wrong with this listing? Report it

Key features

GOOD QUALITY , FASHION DESIGN

Specifications

Condition	New	Place of Origin	Anhui China (Mainland)
Model Number	CPCD30	Type	Powered Pallet Truck
Power Souce	Diesel Engine	Rated Loading Capacity	3000kg
Max. Lifting Height	2000mm~6000mm	Min. Lifting Height	2000mm
Fork Length	1070mm	Fork Width	125mm
Overall Dimensions	3817mmx1230mmx2085mm	Certification	CE,ISO90001,ISO14001,OHSAS-28001,CE
Color	orange/with optional	Details	GOOD QUALITY , FASHION DESIGN

Packaging & delivery

Packaging Detail	Suitable for export
Delivery Detail	within 25 days

Product description

We are devoted to the research, development and manufacture of hi-tech forklifts and aim to improve self-innovation capacity and the development of national forklift industry. We look forward to cooperating with you based on mutual development. Contact us for more details

Forklift Features:

1)Mature Reliable Power Equipment

2)Comfortable Operation Space

3)Partial Shock Mitigation System

4)Wide Vision Mast

5)Exquisite Taillight

Forklift Specification:

1)Load capacity: 3000kg

2)Load center: 500mm

3)Max. lifting speeds (full load): 470mm/s

4)Max. driving speeds: 20/19.5km/h

5)Gradeability: 15%

6)Lifting height: 3000mm(with optional)

7)Tilting angles (forward - backward): 6 / 12

8)Min. turning radius: 2480mm

9)Min. under-clearance: 110mm

10)Overall length: 3817mm

11)Overall width: 1230mm

12)Overall height (with mast retracted): 2055mm

13)Overall height (with mast extended): 4260mm

14)Overall height to overhead guard: 2085mm

15)Wheel base: 1700mm

16)Front tread: 1000mm

17)Rear tread: 970mm

18)Front tyre: 28x9-15

19)Rear tyre: 6.50-10

20)Total weight: 4350kg

21)Fork width: 125mm

22)Fork thickness: 45mm

23)Fork length: 1070mm(with optional)

24)Engine model: C490BPG/A490BPG/CA498/ISUZU C240/YANMAR 4TNE498

25)Power shift:Hydraulic transmission

26)Packing Details:3 SETS/20GP & 5 SETS/40GP

27)Optional:Sideshifters/Fork Positioner/Paper Roll Clamps/Carton Clamps/Etc.

FAQ

What model is this machine?: The model number is CPCD30.
What type of machine is it?: It is a Powered Pallet Truck.
Is it new or used?: Condition: New.
What certifications does it have?: Certification: CE,ISO90001,ISO14001,OHSAS-28001,CE.
