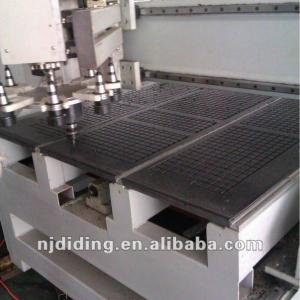

2613 annealing treatment Woodworking center

ATC Woodworking center DL-2613

Specification:

Operating System :Taiwan Syntec

Driving Motor:Japanese Panasonic Servo Motor

Inverter :Taiwan Delta Inverter

Spindle:9kw Italian columbus spindle

Guide rail:Taiwan PMI Square liner guide rail

Germany Eisler Reducer Box

Vacuum pump:Original Germany becker vacuum pump

Working Area: 2600mm*1300mm*400mm

Table Size:1240*3400mm

Table Structure:Console Table

Transmission: Y-Rack Pinion X, Z-Ball Screw

MAX Travelling Speed:50000mm/min

MAX Working Speed:25000mm/min

Spindle Power:9kw Italian columbus spindle
Spindle Speed:24000rpm/min

Boring Unit:9 Vertical + 2 Horizontal + 2 Saws

Working Voltage:AC380V/3pH/50Hz (Option: AC220V/3pH/50Hz)

Net Weight:3000KG

Remarks:

1. The above quotation is FOB Shanghai;

2. The quotation is valid within 30 days from issuing date;

3. The above quotation is negotiated the configurations according to the forms.

4. Payment Terms: 50% deposit before production, make the balance of payment fully before shipment;

5. Lead time: Within 15 working days after receiving the deposit.

6. Guarantee policy:

1) 1 year guarantee period for the whole machine; 6 months for spindle.

2) Prime cost for spare parts whenever problems occur;

3) Software is upgraded for free within one year.

7. Free training for clients’ staff;
