Shotcrete Machine:, 1.suitable for Wet and Dry cement mortar., 2.capacity 3CBM,5CBM,7CBM,9CBM, 3.Used for Tunnel, bridge,etc. - details see: https://www.machineto.com/2013-best-sale-shotcrete-machine-for-sale-10096250

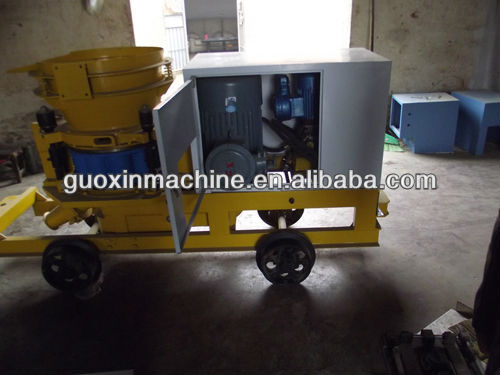

shotcrete machine for sale

description of shotcrete machine:

1.Shotcrete machineare divided into two major types: explosion-proof type and non-explosion-proof type, both are based on straight-through-type rotor blanking under the rotor material.

2.Shotcrete machinecan take full advantage of the role of air force jet to ensure the smooth discharge. The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion.

3.Shotcrete machine When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine.

4.Shotcrete machine is easy to operate, sprays evenly, and has the advantage of a low dust, low rebound.It optimized the working environment, and improved the quality of spray layer.

Technical data:

Model	GX-SP-5
Output Capacity:	5.5m3/hour
Maximum Conveying Distance:	Wet spaying:Level 200m Vertical 50m Dry spraying:Level 80m Vertical 30m
Desired Shotcrete Ingredient Ratio:	Cement/sand and gravel < 0.4
Concrete material mix	1:3-5C/A
Maximum Aggregate Size:	20mm
Inner Diameter of Conveying Hose:	51mm
Working Compressed Air Pressure:	0.2~ 0.4 M pa
Conveying Air Consumption:	7-8CBM / min
Motor Power:	5.5KW
voltage	380v/660v
Dimensions:	1.520*820*1280mm
Net Weight:	700kg
