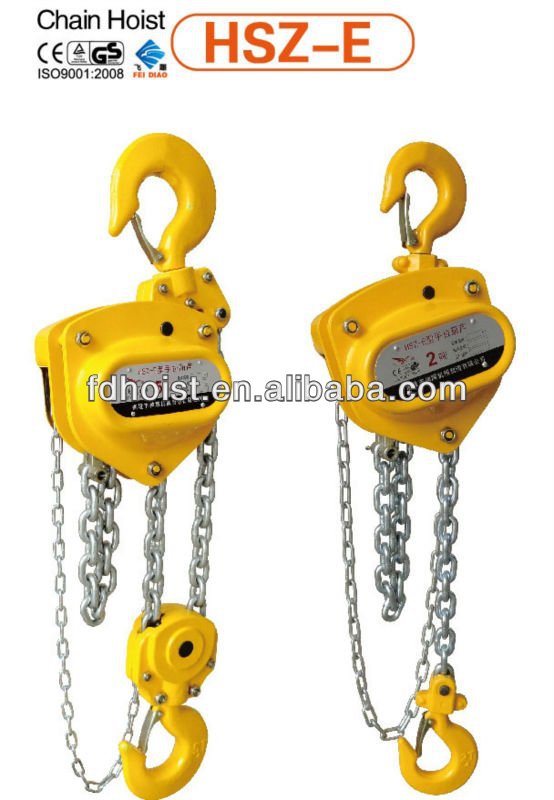

1ton chain pulley block
Price on request
Pricing is provided on request — use the quote form below.
- Port
- SHANGHAI OR OTHER CHINA PORTS
- Minimum Order Quantity
- 50 Piece/Pieces
- Supply Ability
- 100000 Piece/Pieces per Year
- Payment Terms
- L/C,T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
Chain Pulley block Features:·1)CE certificated·2)Safety in operation with easy maintenance·3)It is excellent performance
| Condition | New | Place of Origin | Anhui China (Mainland) |
|---|---|---|---|
| Model Number | HSZ-E | Usage | Construction Hoist |
| Power Source | Hand Chain | Sling Type | Chain |
| Maximum Lifting Weight | 20Ton | Maximum Lifting Height | as requirement |
| Lift Speed | see below description | Certification | CE & ISO9001 |
| Warranty | 1 year | packing | as required |
| Details | Chain Pulley block Features: · 1)CE certificated · 2)Safety in operation with easy maintenance · 3)It is excellent performance |
| Packaging Detail | CARTON, WOODEN CARTON OR PALLET |
|---|---|
| Delivery Detail | 30-40DAYS |
| Model | HSZ-0.5E | HSZ-1E | HSZ-2E | HSZ-3E | HSZ-5E | HSZ-10E | HSZ-20E | |
| Capacity load | t | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Test load | t | 0.75 | 1.5 | 3 | 4.5 | 6.25 | 12.5 | 25 |
| Effort to rated capacity | N | 200 | 304 | 314 | 268 | 383 | 392 | 395x2 |
| No of load chain | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Diameter of load chain | mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
| Dimensions | A | 131 | 140 | 170 | 170 | 186 | 207 | 215 |
| mm | B | 127 | 158 | 187 | 220 | 253 | 398 | 650 |
| D | 36 | 36 | 45 | 50 | 62 | 85 | 110 | |
| K | 24 | 28 | 36 | 38 | 48 | 64 | 85 | |
| Hmin | 270 | 317 | 420 | 480 | 635 | 700 | 1000 | |
| Net weight | kg | 8.4 | 11 | 17.5 | 26 | 43 | 70 | 158 |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 3.2 | 3.7 | 5.3 | 9.7 | 19.4 |
